Cuplock Scaffolding Manufacturer with In-House Welding
We make cuplock scaffolding on the same welding machines we build for other manufacturers. That changes how we talk about tolerances, output, and what we can promise.
Cuplock Made on the Same Standards Welding Machines

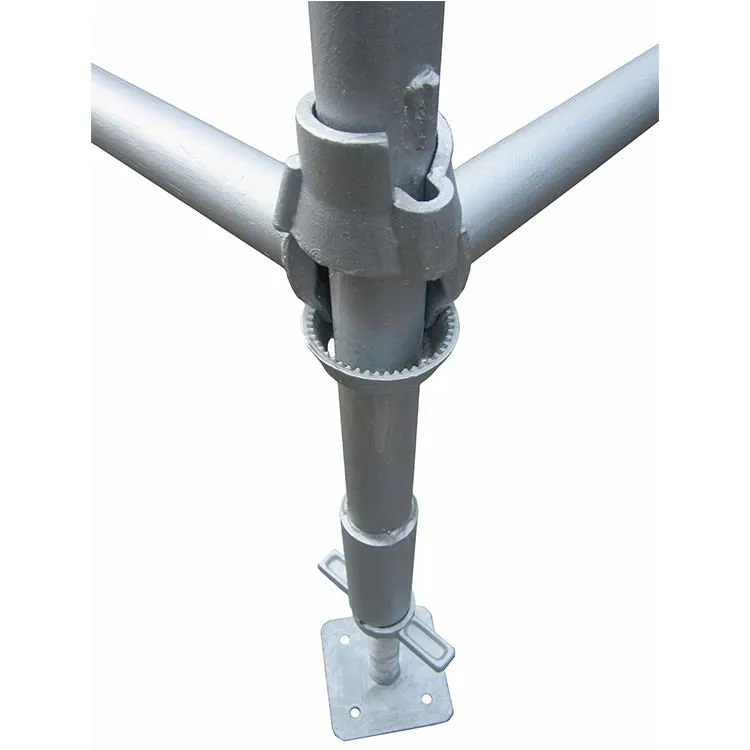

Our cuplock standards are welded on the same automatic lines we sell to other scaffolding makers. The machine holds the tube, places the cup, and welds with 13 power sources working at once. That setup gives us repeatable cup spacing and a straight standard from 0.5 to 3.0 meters.
We do not claim this makes our cuplock special. Many factories use similar equipment. But owning the line means we can adjust it for our own production without waiting on a supplier. It also means the people who run the line are the same people who built it.
Cuplock standards
| Length | Cup joints | Cup spacing | Tube | Finish |
|---|---|---|---|---|
| 0.5 m | 1 | 500 mm | Ø48.3 mm | Hot-dip galvanized or painted |
| 1.0 m | 2 | 500 mm | Ø48.3 mm | Hot-dip galvanized or painted |
| 1.5 m | 3 | 500 mm | Ø48.3 mm | Hot-dip galvanized or painted |
| 2.0 m | 4 | 500 mm | Ø48.3 mm | Hot-dip galvanized or painted |
| 2.5 m | 5 | 500 mm | Ø48.3 mm | Hot-dip galvanized or painted |
| 3.0 m | 6 | 500 mm | Ø48.3 mm | Hot-dip galvanized or painted |
Nominal dimensions. Wall thickness 2.75 / 3.0 / 3.5 mm, customizable. Unit weights and load data are issued with the quotation.
Cuplock ledgers
| Bay length | Tube | End fitting |
|---|---|---|
| 0.6 m | Ø48.3 mm | Forged blade end |
| 0.9 m | Ø48.3 mm | Forged blade end |
| 1.2 m | Ø48.3 mm | Forged blade end |
| 1.5 m | Ø48.3 mm | Forged blade end |
| 1.8 m | Ø48.3 mm | Forged blade end |
| 2.5 m | Ø48.3 mm | Forged blade end |
Nominal dimensions. Other bay lengths are made to order.
Tell us what you are building
Say what failed you last time. We answer with specifics, not a brochure.
- Made in our own plant, 100,000 m², founded 2016
- Hot-dip galvanized, painted or powder coated
- Reply within 24 hours
